BF-660/670 Fingerprint access controller, a total biometric base technology is 100% suitable applying to any Entrance-Exit Security, Building Security, Elevator Security, Office Security... Access Control field or for Enterprise level employee's Time and Attendance control system. BF-660/670 can be using as a Standalone device without connecting with PC / Workstation or can be an integrated solution by connecting to PC/Workstation thru the build-in RJ45 ports.
Standalone mode: BF-660/670 can be working just like a common Access controller system by simply pairing with Exit Button, Card/Fingerprint Reader or Magnetic Lock... Additionally, with build in dry connectors which would allow you to integrate security alarm system.

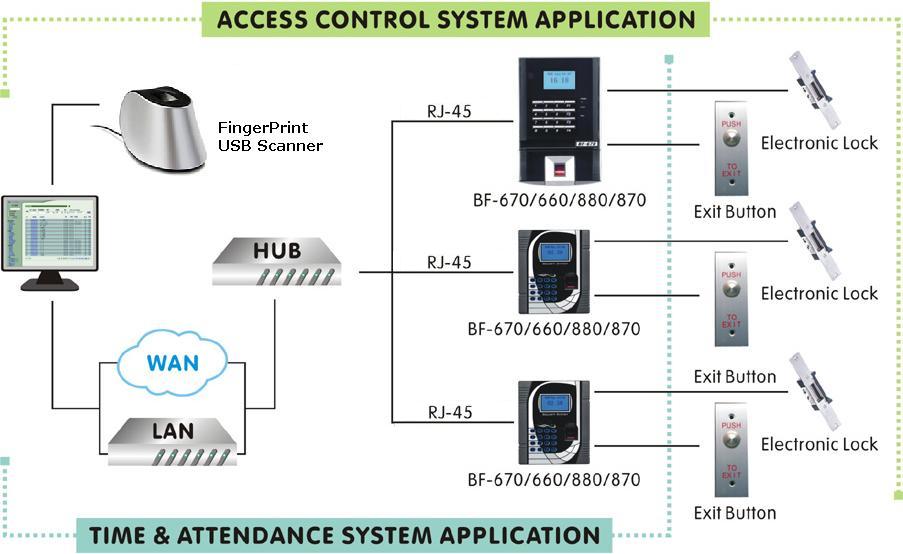

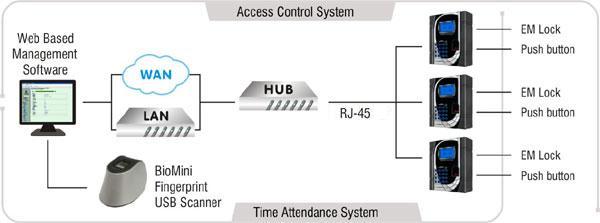

Internet mode: Master/Slave mode provided for multi-doors, multi points ( eg . between headquarter and branch offices) Time and Attendance control with standard Web management software.
|
|
| |
|
Site Security and Access Control (Door, Carpark, Elevator), Time Attendance
|
|
| |
|
Master/Slave Function.
On-line Viewing Door Status via Web Browser.
Double Badge Control. Dual Door Interlocking.
Multi-door Control Up to 8 Doors (16 External Readers).
Optical-based Technology, Low Power Consumption.
Audible Indicators, LCD On-screen Menus, Simple Enrollment Process.
Stand Alone or Networking System
2 relay output, one for door lock, the other for timer ringing bell.
Elevator Control Up to 9 Lifts, 128 Floors / Lift (Need BF-333).
Built-in http Server, Can Use Web Browser to Make System Management.
Selectable Time Zone for Fp + Pin / Card + Pin / Lock Release / Exit Button).
Anti Pass Back (No Tolerance / Period Timer), Offline with Un-limited Level, No Need Online Software Support.
Real-Time and On-Line door status monitoring thru web browser.
Support 100 Holidays, Internet Time Server, 40 Sets Function Key Setting, 128 Departments, 128 Designations, 255 Time Sets, 255 Time Zones, 200 Groups.
|
|
| |
|
Verification option: Fingerprint, Fingerprint+Card, Fingerprint+Pin, Card+Pin, Fingerprint+Card+Pin
Verification Mode: 1:1 /1:N.
Verification Time: Less Than 2.0 sec.
Registration Time: Less Than 3.0 sec.
False rejection (FRR): Less than 0.01%
False acceptance (FAR): Less than 0.001%
Capacity: 4,795 persons, totally 9,590 templates (each user with 2 templates)
Log data: 65,536 entries
2,000 entries System Log to keep track of system modification history
Relay output x 2 (Door Lock, Timer Ring Bell)
RS-485x1 External Reader & Relay Box (BF-20)
RS-232x1 Dial Up Modem or Mini Printer
TCP/IP (Reserved for internetworking)
Communication speed: Ethernet 10/100M, Auto crossing.
Card format: 125 KHz (EM/TM); 13.56 MHz (Mifare)
Reading range: 10 ~ 15cm (EM/TM), 5 ~ 7cm (Mifare)
Keypad: 10 numeric keys (0~9) + 6 function keys (F1~F4,#,*)
Display: 128 x 64 Pixels LCD, 2 LED
Operation Temperature: 0C ~ 65C
Operation Humidity: 5 ~ 95%RH
Power: DC 9~24V, 1A
Weight:
BF660: 500g.
BF670: 580g
Dimension:
BF660: 170 x 143 x 48 mm
BF670: 223 x 170 x 65 mm
|
|
| |
|
| Model |
Type |
Optional 1 |
Optional 2 |
BF-660 |
E: EM |
V: Voice |
- |
M: Mifare |
X: EM+Mifare |
H: HID |
BF-670 |
E: EM |
V: Voice |
P: POE |
M: Mifare |
X: EM+Mifare |
H: HID |
|
|
| |
|
How to choose a model ?
For example: BF-660-E, BF-660-M-V, BF-670-E-P and so on.
|
|
| |
|
