BF880/870 Series - Web based, FingerPrint, Single Door Controller with 8-Multi-Door Controller function



880 Controller

870 Controller

BF880



BF870

BF-880/870 is a RFID identification based controller for Proximity card. It is always used to manage entrance security, work place time attendance, overtime working verification and any other situation/event for the authorized personnel's presence. It can either work standalone without connecting to the PC or be integrated with the PC via built-in RJ-45 port.

Standalone mode: BF-880/870 is only a general access control system to be connected with push button, RFID reader and electronic lock for access control of in/out. Besides, it is equipped with auxiliary contacts for security alarm ¡­etc.

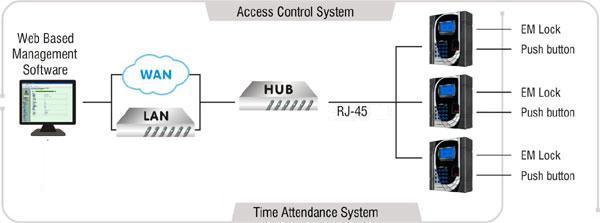

Internet mode: it offers Mater and Slave function for Multi-Door Control by dominating other BF-870(s). Meanwhile, it may be accompanied with WEB browser to manage every area of time attendance respectively




Applications

  • Site Security and Access Control (Door, Carpark, Elevator), Time Attendance

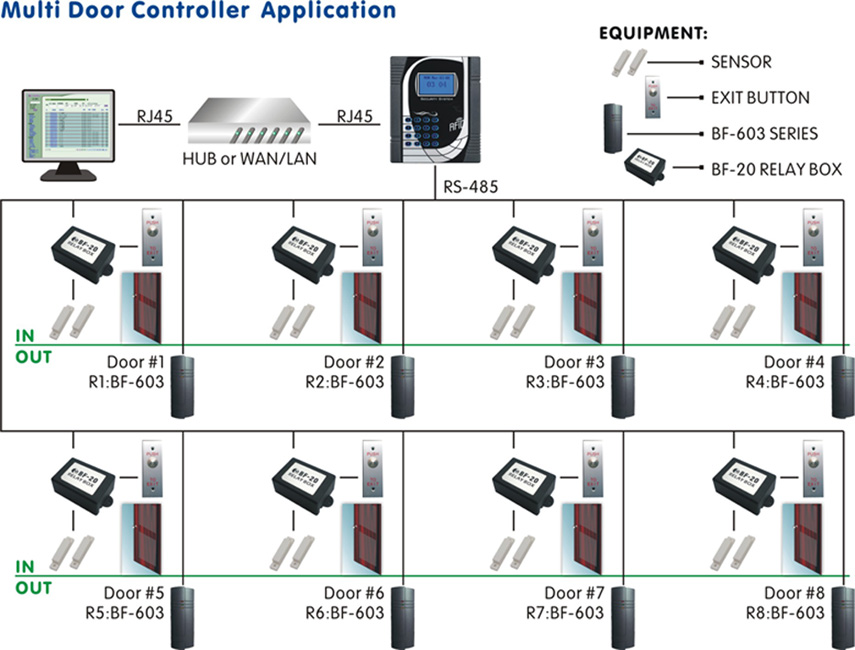

    • 880 Application


    Features

  • Master/Slave Function.
  • On-line Viewing Door Status via Web Browser.
  • Double Badge Control. Dual Door Interlocking.
  • Multi-door Control Up to 8 Doors (16 External Readers).
  • Audible Indicators, LCD On-screen Menus, Simple Enrollment Process.
  • Stand Alone or Networking System
  • 2 relay output, one for door lock, the other for timer ringing bell.
  • Elevator Control Up to 9 Lifts, 128 Floors / Lift (Need BF-333).
  • Built-in http Server, Can Use Web Browser to Make System Management.
  • Selectable Time Zone for Fp + Pin / Card + Pin / Lock Release / Exit Button).
  • Anti Pass Back (No Tolerance / Period Timer), Offline with Un-limited Level, No Need Online Software Support.
  • Real-Time and On-Line door status monitoring thru web browser.
  • Support 100 Holidays, Internet Time Server, 40 Sets Function Key Setting, 128 Departments, 128 Designations, 255 Time Sets, 255 Time Zones, 200 Groups.



    • Specifications

  • Verification option: Card, Card+Pin, Pin
  • Capacity: 5,000 cards (Extendable 10,000/20,000/50,000).
  • Log data: 65,536 entries
  • 2,000 entries System Log to keep track of system modification history
  • Relay output x 2 (Door Lock, Timer Ring Bell)
  • RS-485x1 External Reader & Relay Box (BF-20)
  • RS-232x1 Dial Up Modem or Mini Printer
  • TCP/IP (Reserved for internetworking)
  • Communication speed: Ethernet 10/100M, Auto crossing.
  • Card format: 125 KHz (EM/TM); 13.56 MHz (Mifare)
  • Reading range: 10 ~ 15cm (EM/TM), 5 ~ 7cm (Mifare)
  • Keypad: 10 numeric keys (0~9) + 6 function keys (F1~F4,#,*)
  • Display: 128 x 64 Pixels LCD, 2 LED
  • Operation Temperature: 0C ~ 65C
  • Operation Humidity: 5 ~ 95%RH
  • Power: DC 9~24V, 1A
  • Weight:
    BF880: 480g.
    BF870: 385g
  • Dimension:
    BF880: 170 x 143 x 48 mm
    BF870: 156 x 140 x 50 mm



    • Product Type

    Model Type Optional 1 Optional 2

    BF-880

    E: EM

    V: Voice

    -

    M: Mifare

    X: EM+Mifare

    H: HID

    BF-870

    E: EM

    V: Voice

    P: POE

    M: Mifare

    X: EM+Mifare

    H: HID


  • How to choose a model ?
    For example: BF-880-E, BF-880-M-V, BF-870-E-P and so on.



    • Configurations

  • Access Control and Time Attendance





    • Accessories

  • BF830: Proximity Slave Controller
  • RFID Readers
  • RFID Cards
  • BF20: Single Door Interface, Single Reader
  • BF50: Single Door Interface, Dual Reader
  • BF333: Elevator Controller
  • SH24: Mini Printer
  • Power Supply
  • Door Lock
  • Exit Button
  • Emergency Break Glass
  • Key Override Switch
