BF631 Series - Web based, FingerPrint, Single Door Controller



Finger Print

Finger Print




BF-631 Fingerprint access controller, a total biometric base technology is 100% suitable applying to any Entrance-Exit Security, Building Security, Office Security... Access Control field or for Enterprise level employee's Time and Attendance management system. BF-631 can be using as a Standalone device without connecting with PC / Workstation or can be an integrated solution by connecting to PC/Workstation thru the build-in RJ45 ports.

Standalone mode: BF-631 can be working just like a common Access controller system by simply pairing with Exit Button, Card/Fingerprint Reader or Magnetic Lock... Additionally, with build in dry connectors which would allow you to integrate security alarm system.

Internet mode: To be a single door controller (Reader mode) by working under BF-670 or BF-660 devices, door status can be total managed and centralized by Web management software.




Applications

  • Site Security and Access Control (Door, Carpark), Time Attendance

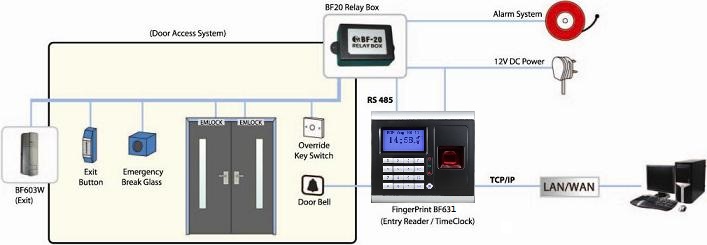

    • 631 Application


    Features

  • Standalone mode, or a Reader mode for Multidoor controller thru TCP/IP working under BF-660/BF-670.
  • Optical based fingerprint sensor pad.
  • Lower power consumption, optional voice indication, OSD menu (On Screen Displayer), and simple enrollment process.
  • Door Bell support.
  • Wiegand Output
  • Fire Alarm Input to release the door lock.
  • USB interface option for log extractions.(Optional)
  • Build-In http server allows on-line system management thru web browser.
  • Auto Synchronise Time with Internet Time Server.
  • Real-Time and On-Line door status monitoring thru web browser.
  • Support Double badge and dual-doors interlocking.
  • Anti pass back (no tolerance / period timer) can support unlimited levels without online software.
  • Real-Time and On-Line door status monitoring thru web browser.
  • Support 50 Holidays, 40 Sets of Function Keys , 32 Departments, 32 Designations, 64 Time Settings, 64 Time Zones, 32 Access Groups.



    • Specifications

  • Verification option: Fingerprint, Fingerprint+Card, Fingerprint+Pin, Card+Pin, Fingerprint+Card+Pin
  • Verification Mode: 1:1 /1:N.
  • Verification Time: Less Than 2.0 sec.
  • Registration Time: Less Than 3.0 sec.
  • False rejection (FRR): Less than 0.01%
  • False acceptance (FAR): Less than 0.001%
  • Capacity: 950 persons, totally 1900 templates (each user with 2 templates)
  • Log data: 32,768 entries
  • 2,000 entries System Log to keep track of system modification history
  • Relay output x 1
  • RS-485x1 External Reader & Relay Box (BF-20)
  • TCP/IP (Reserved for internetworking)
  • Communication speed: Ethernet 10/100M, Auto crossing.
  • Card format: 125 KHz (EM/TM); 13.56 MHz (Mifare)
  • Reading range: 10 ~ 15cm (EM/TM), 5 ~ 7cm (Mifare)
  • Keypad: 10 numeric keys (0~9) + 6 function keys (F1~F4,#,*) & 1 Door Bell
  • Display: 128 x 64 Pixels LCD, 3 LED
  • Operation Temperature: 0C ~ 65C
  • Operation Humidity: 5 ~ 95%RH
  • Power: DC 9~24V, 1A
  • Weight: 350g.
  • Dimension: 125 x 145 x 35 mm



    • Product Type

    Model Type Optional 1 Optional 2

    BF-631

    E: EM

    V: Voice

    U: USB Export transactions

    M: Mifare

    X: EM+Mifare

    H: HID


  • How to choose a model ?
    For example: BF-631-E, BF-631-M-V or BF-631-E-U, and so on.



    • Configurations

  • Standalone Mode
    Exit with Push Button.


    Exit with External Card Reader or Push Button. Secured by encrypted relay box

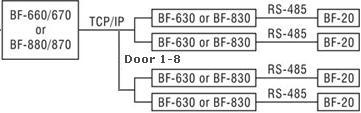

  • Slave Mode
    Support up to 8 doors per Controller





    • Accessories

  • RFID Readers
  • RFID Cards
  • BioMini: USB Desktop FingerPrint Scanner
  • BF20: Single Door Interface
  • Power Supply
  • Door Lock
  • Exit Button
  • Emergency Break Glass
  • Key Override Switch
