BF-MINI Series - Web based, Proximity Reader, Single Door Controller

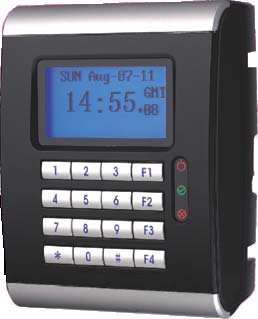

Proximity Reader System

Proximity Reader System




BF-MINI is a RFID identification based controller for Proximity card. It is always used to manage entrance security, work place time attendance, overtime working verification and any other situation/event for the authorized personnel's presence. It can either work standalone without connecting to the PC or be integrated with the PC via built-in RJ-45 port.

Standalone mode: BF-MINI is only a general access control system to be connected with push button, RFID reader and electronic lock for access control on in/out. Besides, it is equipped with auxiliary contacts for security alarm... etc.

Internet mode: it can be linked with BF-870 or BF-880 as a Slave to control a single door. Meanwhile, it may be accompanied with WEB browser to dominate every area of time attendance respectively by the Control Center.




Applications

  • Site Security and Access Control (Door, Carpark), Time Attendance

    • BF-MINI Application


    Features

  • Standalone mode, or a Reader mode for Multidoor controller thru TCP/IP working under BF-660/BF-670.
  • Lower power consumption, optional voice indication, OSD menu (On Screen Displayer), and simple enrollment process.
  • Door Bell support.
  • Wiegand Output
  • Fire Alarm Input to release the door lock.
  • USB interface option for log extractions.(Optional)
  • Build-In http server allows on-line system management thru web browser.
  • Auto Synchronise Time with Internet Time Server.
  • Real-Time and On-Line door status monitoring thru web browser.
  • Support Double badge and dual-doors interlocking.
  • Anti pass back (no tolerance / period timer) can support unlimited levels without online software.
  • Real-Time and On-Line door status monitoring thru web browser.
  • Support 50 Holidays, 40 Sets of Function Keys , 32 Departments, 32 Designations, 64 Time Settings, 64 Time Zones, 32 Access Groups.



    • Specifications

  • Verification option: Card, Card+Pin, Pin
  • Capacity: 5,000 cards
  • Log data: 32,768 entries
  • 2,000 entries System Log to keep track of system modification history
  • Relay output x 1
  • RS-485x1 External Reader & Relay Box (BF-20)
  • TCP/IP (Reserved for internetworking)
  • Communication speed: Ethernet 10/100M, Auto crossing.
  • Card format: 125 KHz (EM/TM); 13.56 MHz (Mifare)
  • Reading range: 10 ~ 15cm (EM/TM), 5 ~ 7cm (Mifare)
  • Keypad: 10 numeric keys (0~9) + 6 function keys (F1~F4,#,*) & 1 Door Bell
  • Display: 128 x 64 Pixels LCD, 3 LED
  • Operation Temperature: 0C ~ 65C
  • Operation Humidity: 5 ~ 95%RH
  • Power: DC 9~24V, 1A
  • Weight: 330g.
  • Dimension: 125 x 145 x 35 mm



    • Product Type

    Model Type Optional 1 Optional 2

    BF-MINI

    E: EM

    V: Voice

    U: USB Export transactions

    M: Mifare

    X: EM+Mifare

    H: HID


  • How to choose a model ?
    For example: BF-MINI-E, BF-MINI-M-V or BF-MINI-E-U, and so on.



    • Configurations

  • Standalone Mode
    Exit with Push Button.


    Exit with External Card Reader or Push Button. Secured by encrypted relay box


  • Slave Mode
    Support up to 8 doors per Controller





    • Accessories

  • RFID Readers
  • RFID Cards
  • BF20: Single Door Interface
  • Power Supply
  • Door Lock
  • Exit Button
  • Emergency Break Glass
  • Key Override Switch
